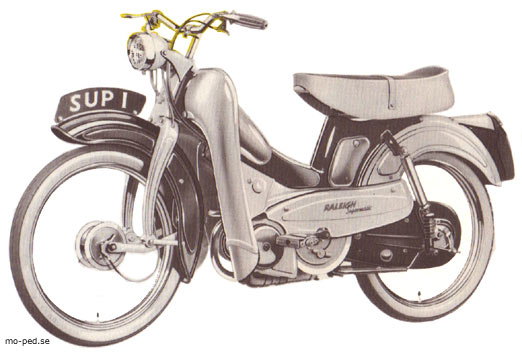

• SUPERMATIC RM5
Engine: 49·9 cubic centimetres (39
mm. borex 41·75
stroke) two stroke rubber mounted.
cylinder with hard chromium plated
bore and flat top
piston. 2·66 B.H.P. at 5,600 R.P.M.
tor with enrichment valve for easy
Transmission: Automatic infinitely
change with engine driven double
clutch. Automatically adjusted vee
drive, enclosed chain secondary
may be disconnected for pedalling.
Gear ratios 11·1:1
minimum. 19·9:1 maximum.
Frame: Pressed steel, pivoting
fork rear suspension
and leading link front forks with
Fully adjustable handlebars.
Tank Capacity: Integral tank. 1
1/8 gallons capacity.
Lighting: Direct from Novi
flywheel generator. 4"
diameter headlamp and rear lamp
Wheels and Brakes: 22·5"x2-25"
white wall tyres.
Chromium plated rims, rust proof
spokes, 4" diameter
front and rear brakes, full-width
light alloy hubs.
Equipment: Tool kit in built-in
stand, speedometer mounted in
headlamp, tyre pump,
electric horn, large mattress dual
seat, pillion footrests
and number plates.
Accessories available:— Panniers,
Finish: Charcoal and pearl grey
enamel with bright
chromium plated fittings.
