Mopeds on the road.        frĺn Ungern - Hungary - Hungery.
 Csepel Bicycle Factory – Sporting Cartridge Factory Székesfehérvár.  ^ back to A-Z.
- - - - - - - - - - - - -
 Mopeded Magyarországon. ● Mopeds in Hungary. ● Mopeder i Ungern.
 Dongó segédmotor, Berva moped, Panni R 50     [Back to links.]



Robogó = Scooter

Mopeded = Mopeds

Moped = Moped

Kerékpár segédmotor = Fahrrad hilfsmotor / Fiets hulpmotor.


 N1





Dongó segédmotor.





Dongó segédmotor.





N2





Dongó segédmotor.





Dongó segédmotor.







Csipkeszörp.



N3

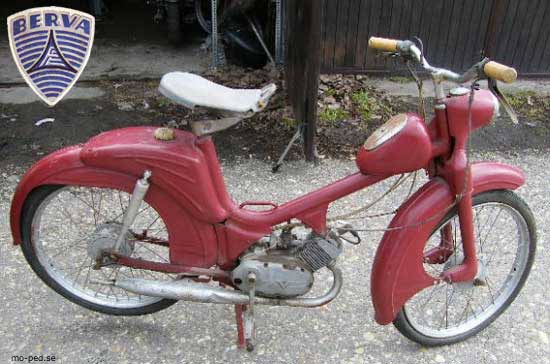

Csepel Berva moped.

Motor: VT50

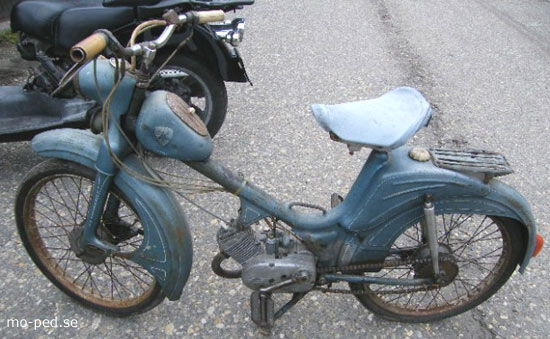

Csepel Berva moped (Pannonia Export Company.).

Motor: VT50





Csepel Berva moped.

Motor: VT50





N4





Csepel Berva moped. ● Technical data.

Motor: VT50





Csepel Berva moped.

Motor: VT50





A CSALÁD ...




N5

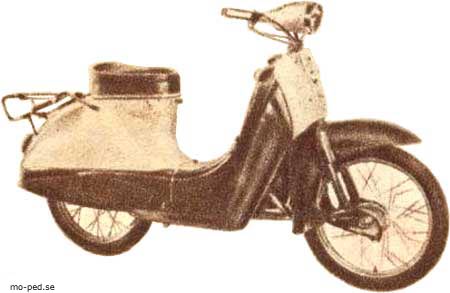

Csepel Panni R 50.

.



Csepel Panni R 50.

.



N6

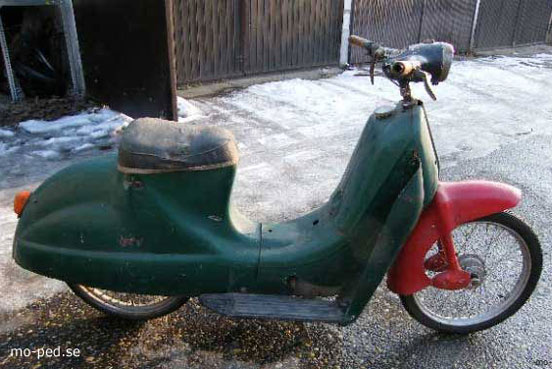

Csepel Panni R 50.

.



Csepel Panni R50 Roller. Bj.60 ● Technical data.

(EBAY Germany).





M1c
 Motor a képen: DONGŇ.   Dongók = Bumblebee = Humla. [Compare: Mosquito.]






Dongó Kerékpár segédmotor

Dongó Cykel hjälpmotor

Dongó Fiets hulpmotor





Dongó bicycle auxiliary engine was constructed with the help of engineers from Italian Gilera Mosquito

The carburetor was completely a Hungarian development.









A Dongó segédmotort a Székesfehérvári Vadásztölténygyár készítette 1955-től 1957-ig.



Dongó auxiliary engine was made in Székesfehérvár Sporting Cartridge factory from 1955 until 1957.













M1d

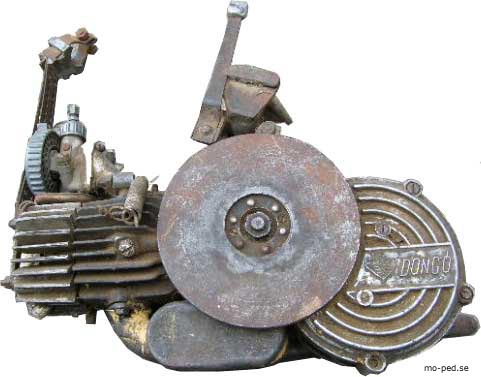

  Dongó segédmotor.


38 cc











M2u
  Csipkeszörp.   [Guide: Softdrinks.]
















M3c
 Berva moped.
































Matchbox cover from Hungary.





M3d
 Pannonia Export Company.


PANNONIA

EXPORT COMPANY OF THE "CSEPEL" STEEL AND METAL WORKS

SOCIÉTÉ D'EXPORTATION DES ACIÉRIES ET USINES METALLURGIQUES "CSEPEL"

AUSSENHANDELSUNTERNEHMEN DER "CSEPEL" STAHL UND METALLWERKE

BUDAPEST 62 P.O.B. 354.







Some TECHNICAL DATA



Engine: VT50 , single-cylinder, two stroke, air-cooled. 38mm bore, 43mm stroke.



Lighting Coil 6V/17W.



Transmission: Four-disc clutch spring pressure, two-speed, manual gearbox.



Tire Size 23-2.25



Dimensions, mass: Length 1770mm, wheelbase 1130mm, height 1,050 mm, width 577mm, 800mm seat height (adjustable).



Fuel tank capacity 5.4 liters.



Performance: Maximum speed 45 m / h, cruising speed of 35 km / h.







M3e

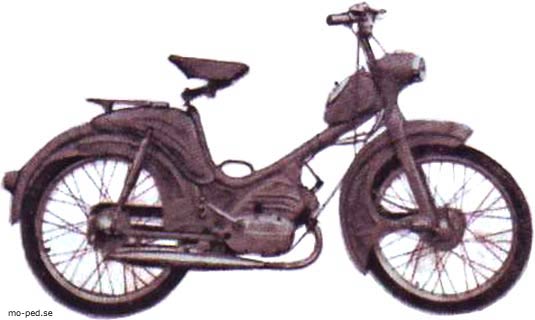

  BERVA MOPED.




Matchboxes of Hungary.


 Faragó László: Dongó, Berva, Panni
M4c
  BERVA Moped


BERVA Moped CHARACTERISTICS



Engine: 48 cc, single-cylinder, two-stroke engine of cross-scavenging system.

Bore: 38 mm, stroke: 43 mm. Compression ratio: 1 : 6.5. Output: 1.8 HP at 5400 rpm.

Ignition: 6 V/17 W flywheel magneto. Single-jet carburettor with airfilter.



Transmission: Power transmission by chain.



Frame: "V" form frame of welded steel tubes, with cover plates over the engine.



Suspension: Front: swing-arm type with torsion spring. Rear: oscillating fork with telescopic springing.



Wheels & brakes: interchangeable wheels with removable spindle: 23 x 2.25"

Inner-expanding brake with cooling fins.



Electrical equipment: Headlamp with 6 V 15/15 W dimmer bulb, built-in speedometer, 1.5 W rear lamp. Electrical horn. Dimmer switch on the steering.



Fuel tank: capacity: approx. 5.4 litre



Saddle: Swinging type with torsion spring and rubber seat.



Accessories: Toolbox, tyre inflator and luggage carrier attached to the frame.



Finish: Grey, blue or dark red. Rims and other unpainted parts chromium plated.



Data: Length: 1770 mm,

Width: 580 mm,

Height: 1050 mm.



Empty weight ... 55 kg

Admissible total weight ... 135 kg

Cruising speed ... 35 km/h

Max. speed ... 45 km/h

Fuel consumption: approx. 1.8 litre/100 km.







M4l
  A CSALÁD MINDEN KERÉKPŔRJAN LEGYEN VILÁGITÁSI FELSZERELÉS   [Guide: Ljus & Reflex.]




                                                                                                                             A KRESZ KÖTELEZÓEN ELÓIRJA !









M5c  R 50
 Csepel Panni R 50     [Compare Victoria Vicky.]




Csepel Kerékpárgyár

FÉRFI ÉS NOI TÜRAKEREKPÁROK,

FÉRFI, NÓI ÉS GYERMEK SPORT-

KERÉKPÁROK,

CSEPEL PANNI TÖRPE ROBOGÓ

48 köbcentis, kétsebességes, kézi inditású,

1,8 lóeró teljesftményú

Felvilágosftás: 144-600, 131-880

(10-24 és 13-43 mellék)













Csepel Bicycle Factory

Men's and women's touring bike. ,

MEN, WOMEN AND CHILDREN'S SPORTS

BICYCLE

CSEPEL PANNI DWARF (MINI) SCOOTER

48 cc, two-speed, manual-start,

performance 1.8 horsepower

Information: 144-600, 131-880

(By 10-24 and 13-43)






M5d







Some TECHNICAL DATA

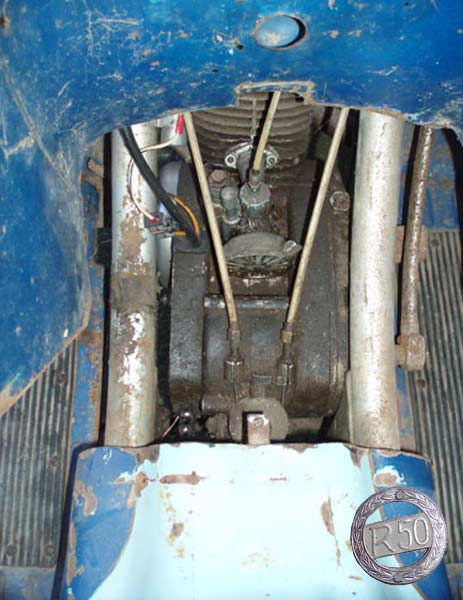

Engine: VT50R, single-cylinder, two stroke, air-cooled. 38mm bore,

43mm stroke, stroke volume of 48.8 cubic inches.



Lighting Coil 6V/17W.



Transmission: Four-disc clutch spring pressure, two-speed, manual gearbox.



Tire Size 23-2.25



Front-wheel wishbone suspension.

Rear suspension swing arm.



Performance: Maximum speed 45 m / h, cruising speed of 35 km / h.







M6c
 Panni. ● Hungarian matchbox labels.








M6d

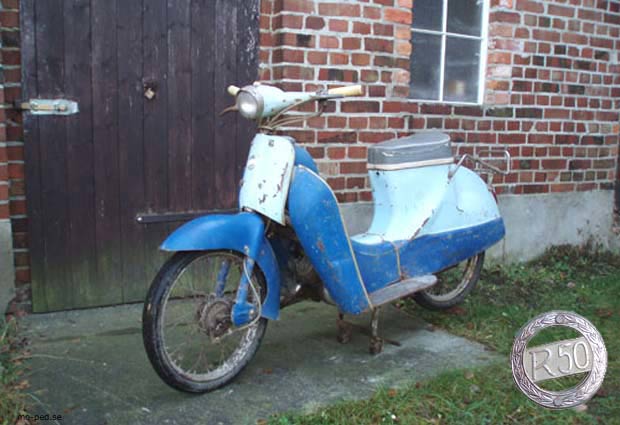

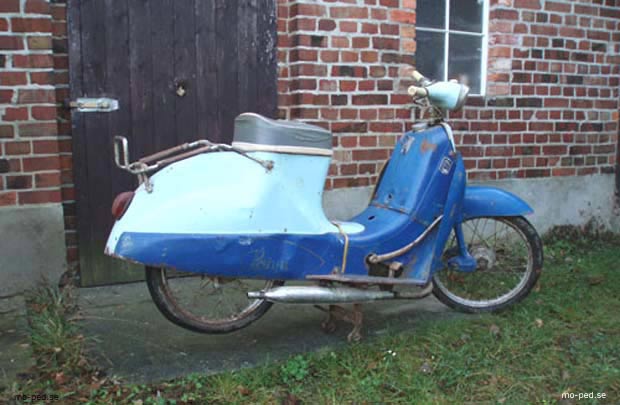

 1960 Panni R50 Roller.  On Ebay, Germany 2013.


TECHNICAL DESCRIPTION:



Engine Single-cylinder, two-stroke, air-cooled 48 cc engine with a two-speed gear change mechanism.

Hand-operated starter.

Engine performance: 1.8 HP at 5200 rpm.



Electrical equipment: 6 V-17 W flywheel magneto;

90 mm dia headlamp embodying the speedometer; 15/15 W

Bilux bulb. 2.4 W rear lamp.



Frame: Double cradle frame of steel tubes, fully encased.



Front wheel suspension: rubber-bedded rocker arm type.



Rear suspension: swing-fork with torsion spring.



Tyres 20 x 2,25



Brake: Inner expanding brake, Ř: 100 mm, width: 16 mm.



Driving chain 1/2x3/16"



Fuel tank capacity: approx, 5.7 litre, of which 0.5 l. reserve fuel.

Fuel consumption approx. 1.8 litre/100 km.



Max. speed 45 km/h.



Weight 60 kg (with fuel)

Dimensions Wheelbase 1170 mm

Overall length 1850 mm

Width 640 mm

Height 980 mm

Saddle height 760 mm
