| Fabrique Nationale d'Armes de Guerte, S. A. Herstal-lez-Liège, Belgium. |
|
1960 - Technical data mopeds.
|
|
F.N. Utilitair Bj.60 Motor: F.N.
|
|
|
F.N. Princess Scooter Bj.60 Motor: F.N.
|
F.N. Fabrina Scooter Bj.60 Motor: F.N.
|
|
|
|
F.N. Rocket Bj.60 Motor: F.N.
|
|
|
|
|
F.N. Rocket Competition Bj.60 Motor: F.N.
|
F.N. Rocket Competition Bj.60 Motor: F.N.
|
|
|
| M2c |
|
| 1960 | F.N. Technical data mopeds. |
 |
|
|
2 PEOPLE CAN TRAVEL IN COMFORT ON F.N. MOPEDS AN F. N. MOPED MUST BE TRIED TO APPRECIATE THE IMPROVED BRAKING BY BRAKE DRUMS CAST IN -GHT ALLOY.
The F.N. 3 H.P. 2 or 3-speed ENGINE is a compact looking unit with gear box incorporated. The electrical equipment, all housed beneath the casing, is accessible without stripping. All components are of ample size and ensure an unrivalled sturdiness in service.
For all models of mopeds and motor cycles, we reserve the right to alter designs or constructional details at any time without giving notice. Prices subject to alteration without notice, The terms of guarantee are limited to the provisions printed on our sales contracts.
Fabrique Nationale d'Armes de Guerte, S. A. Herstal-lez-Liège, Belgium. |
|
|
engine Type 2 stroke Cylinder chromium plated aluminium Bore 38.7 mm (1.5") Stroke 42 mm (1.6") Cylinder capacity 49.4 cc. Compression ratio 7/1 Normal running of engine 5.500 r.p.m. Power 2.2 - 3 H.P., according to diameter of admission pipe Lubrication petroil Silencer removable
carburettor Brand ENCARWI or BING Operation twist grip on handlebar
clutch Type multidisc with inserts in oil bath Operation disconnecting lever on handlebar - cable operated
gear box Number of speeds 2 or 3, according to type Operation twist grip on handlebar, with gear indicator - cable operated
starter Operation pedals used as kickstarter
frame Type monotube - large section Front fork telescopic - spring damper - play 100 mm (3.9") Rear fork swinging fork - dampers with double helicoidal spring - play 55 mm. (2.2") Petrol tank capacity : 7 litres (1 1/2 gallons), including 0.25 litre reserve (1/2 pint)
wheels Hubs light alloy - stiffening ribs Rims 23 X 2 - steel Tyres 23 X 2 or 23 X 2.25 or 23 X 2.50. according to model Brakes drum brakes [inner dia. 104 mm (4.1")] Brake operation front : handlebar grip lever rear: backpedal
electrical equipment Type MILLER Ignition magneto 6 V. - 18 W. Head lamp pilot and main bulb - operated by dipper switch ors handlebar
speedometer includes kilometre or mileage meter
anti-theft device Neiman
measurements Wheel base 1.150 m (approx. 4 ft) Overall length 1.780 m. (5 ft. 10") Height of saddle 850 m. (2 ft. 10") - Rocket .750 m (2 ft. 6") Consumption 1.9 litres petroil l per 100 km. (approx. 195 m.p.g.)
|
| M2d |
|

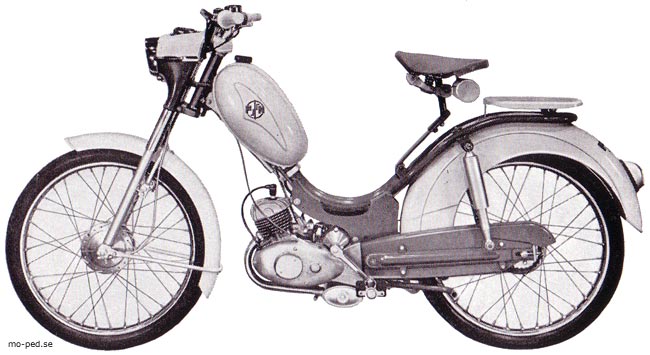

| 1960 | F.N. utility |
|
Engine : 2.2 H.P. 2 or 3-speed. Panelled head lamp - sprung saddle, single seat
- petrol tank on front frame tube - luggage carrier - bell (electric horn for U.K.)
- black tyres 23 X 2.00 - extra charge for kilometre or mile recorder and passenger seat.
Colours : Gentian blue and ivory - light grey and dark blue.
|
|
|
| M3c |
|

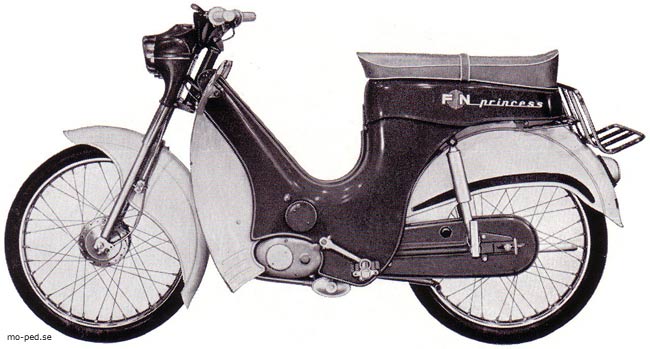

| 1960 | F.N. princess SCOOTER |
|
Engine : 3 H.P. 2 or 3-speed.
Frame completely panelled in pressed steel plate, 8/ 10 mm.
- window for inspection of carburettor
- head lamp and handlebar panelled with embodied kilometre or mile
recorder - enclosed chain-guard with inspection opening -
dual seat with hand grip - foot rest for passenger -
electric horn - long exhaust pipe - black tyres, front 23 X 2.25, rear 23 X 2.50 - luggage rack.
Colours : Vermilion and ivory - light and dark grey - light grey and dark blue.
|
|
|
| M3d |
|

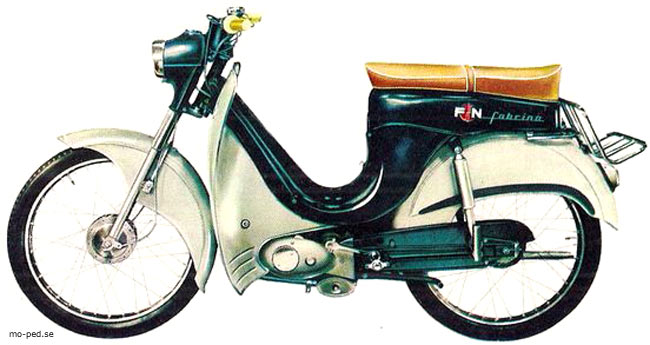

| 1960 | F.N. fabrina SCOOTER |
|
moteur 3 CV, 2 vitesses. carénage couvrant entièrement le cadre et permettant un accès facile au moteur
- phare et guidon carénés avec compteur kilométrique incorporé - selle duo avec poignée sonnette
- repose-pieds pour passager - porte-bagages tube d'échappement long - pneus noirs 23 X 2,25.
TEINTES : gris clair et gris foncé.
|
|
|
| M4c |
|

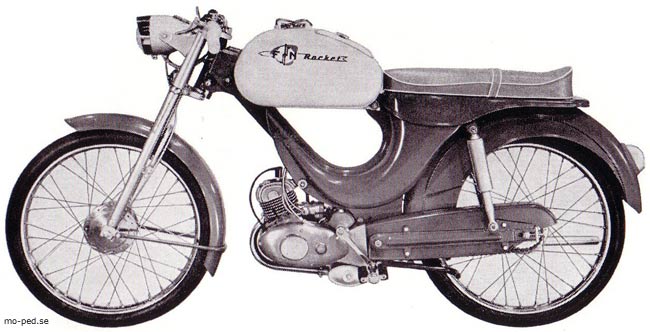

| 1960 | F.N. rocket |
|
Engine: 3 H.P. 3-speed. Coloured plastic panelling - saddle tank, incorporating tool-box,
« Competition » type cap on fuel tank for speedy refilling -- long saddle - racing handlebar
- kilometre or mile recorder embodied in head lamp - electric horn long exhaust pipe - black tyres 23 X 2.00.
Colours : Vermilion framework and cream coloured tank.
|
|
|
| M5c |
|

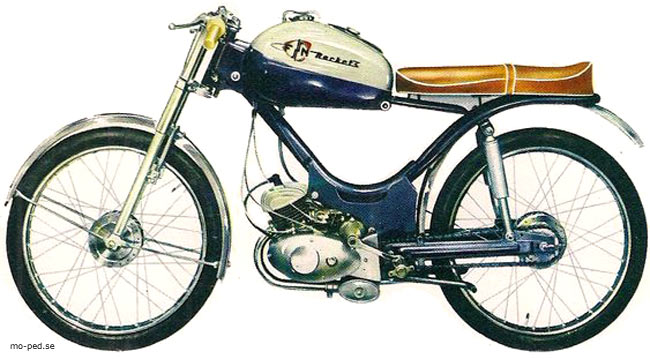

| 1960 | F.N. rocket competition |
|
« COMPETITION » engine - 3-speed - special cylinder head dell'Orto carburettor dia. 16 mm
- light frame short handlebar - long saddle - supplied without kilometre recorder - tyres 23 X 2.00.
Accessories : brake pedal and connecting rod for rear brake, crosscountry rear tyre, at extra charge.
Colours : light and dark grey.
|
|
|
| M5d |
|

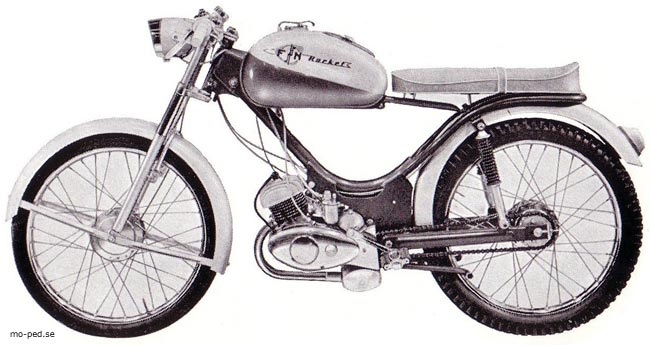

| 1960 | F.N. rocket COMPÉTlTlON |
|
moteur « COMPETITION » 3 vitesses - culasse spéciale carburateur dell'Orto 0 16 mm
- cadre allégé - guidon court selle longue - fourni sans éclairage, ni compteur kilométrique pneus 23 X 2,00.
accessoires : pédale et tringle de commande du frein arrière, pneu arrière « tout terrain A moyennant supplément.
TEINTES : gris clair et gris foncé.
|
|
|
