 FIORELLI Fabbrica Moto Velo Fiorelli, Novi Ligure (Italy)

^ back to Italia Main.

- - - - - - - - - - - - -






• Fiorelli Turismo Airone

• Fiorelli Turismo scooter ciclomotore .. Motore 3 gear

• Fiorelli Stream Line ........................ Motore FBM P3 (3 gear) 1958

• Fiorelli Esportazione mondiale

• Fiorelli Gran Sport .......................... Motore 3 gear

• Fiorelli Bengala ............................. 50cc













N2





Fiorelli Turismo Airone





Fiorelli Turismo scooter ciclomotore

Motore 3 gear





Fiorelli Stream Line   Bj.58

Motore FBM P3 (3 gear)





N4





Fiorelli esportazione mondiale

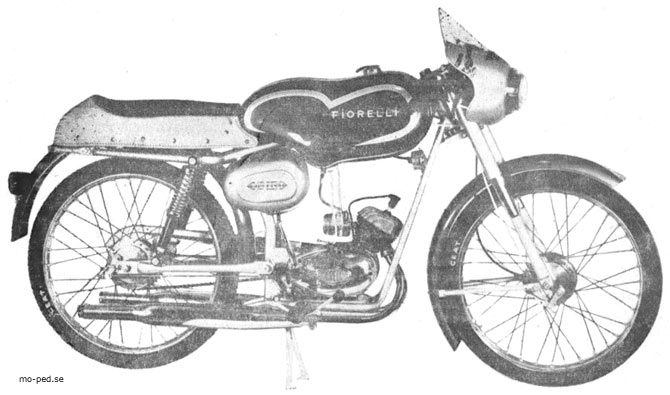

Fiorelli Gran Sport

Motore 4 gear












M2c

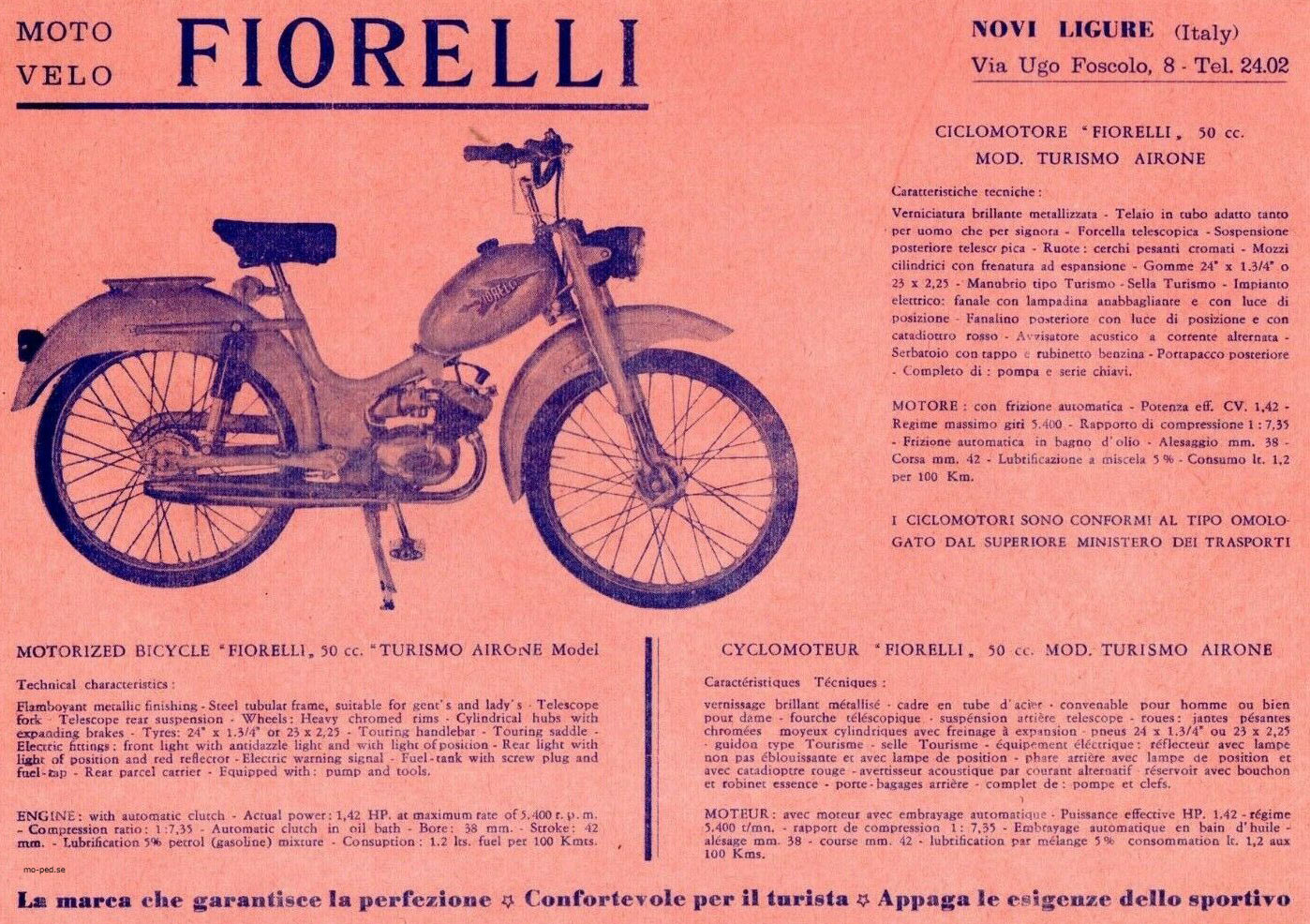

MOTORIZED BICYCLE "FIORELLI" 50 cc. TURISMO AIRONE Model

Technical characteristics:

• Flamboyant metallic finishing • Steel tubular frame, suitable for gent's and lady's

• Telescope fork • Telescope rear suspension • Wheels: Heavy chromed rims

• Cylindrical hubs with expanding brakes • Tyres: 24" x 1.3/4" or 23 x 2.25

• Touring handlebar • Touring saddle

• Electric fittings: front light with antidazzle light and with light of position

• Rear light with light of position and red reflector • Electric warning signal

• Fuel-tank with screw plug and fuel-tap • Rear parcel carrier

• Equipped with: pump and tools.







ENGINE: with automatic clutch • Actual power: 1,42 HP. at maximum rate of 5.400 r. p. m.

• Compression ratio: 1.7,35 • Automatic clutch in oil bath • Bore: 58 mm. • Stroke: 42 mm.

• Lubrification 5% petrol (gasoline) mixture • Consupcion : 1.2 lts. fuel per 100 Kmts.

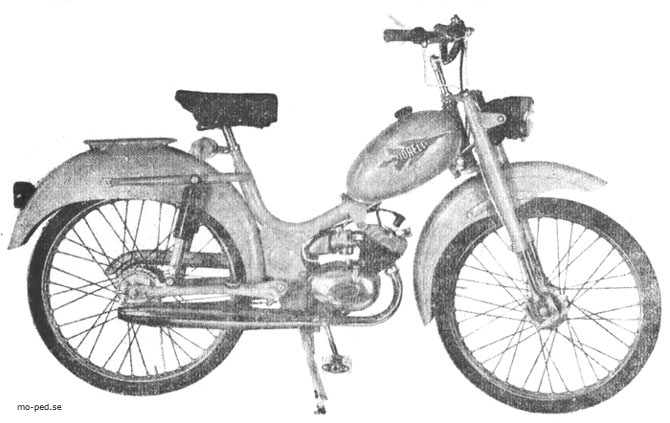

Fiorelli Turismo Airone







































Large.








 Moped ciclomotori Fiorelli Turismo Airone
M2d

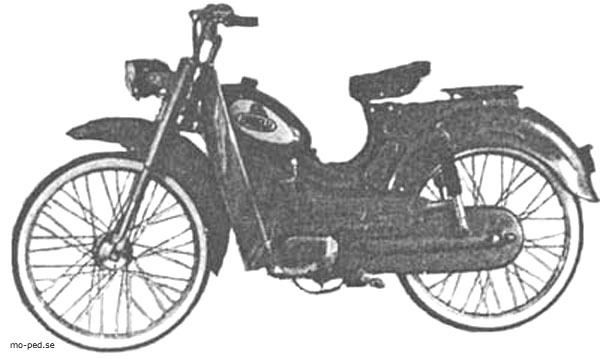

Fiorelli Turismo scooter ciclomotore

Motore 3 gear






 Mopedscooter Fiorelli Turismo
M3c
 1958     [FBM motor guide.]

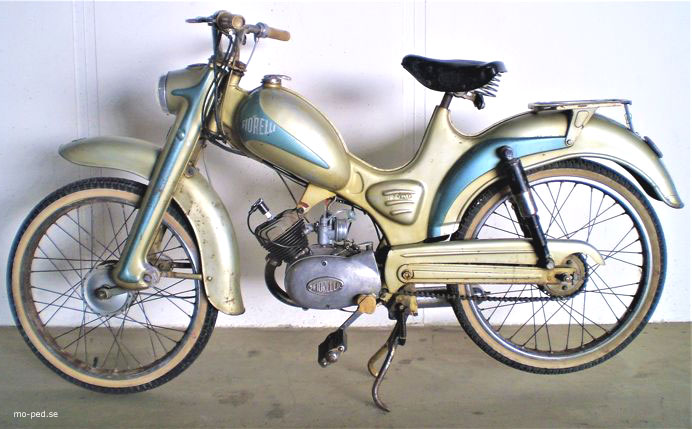

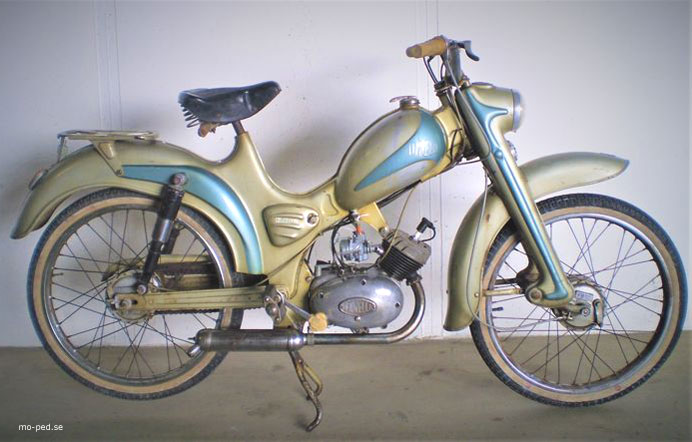

Fiorelli Stream Line.

Motore FBM P3 (3 gear)











M4c






ESPORTAZIONE

MONDIALE









CAS. N.1250

NOVI LIG.

ITALY



NEW YORK

U.S.A.









CAS. N.1261

FIORELLI

NOVI LIG.

ITALY



JOHANESSBURG

SOUTH AFRICA





M5c

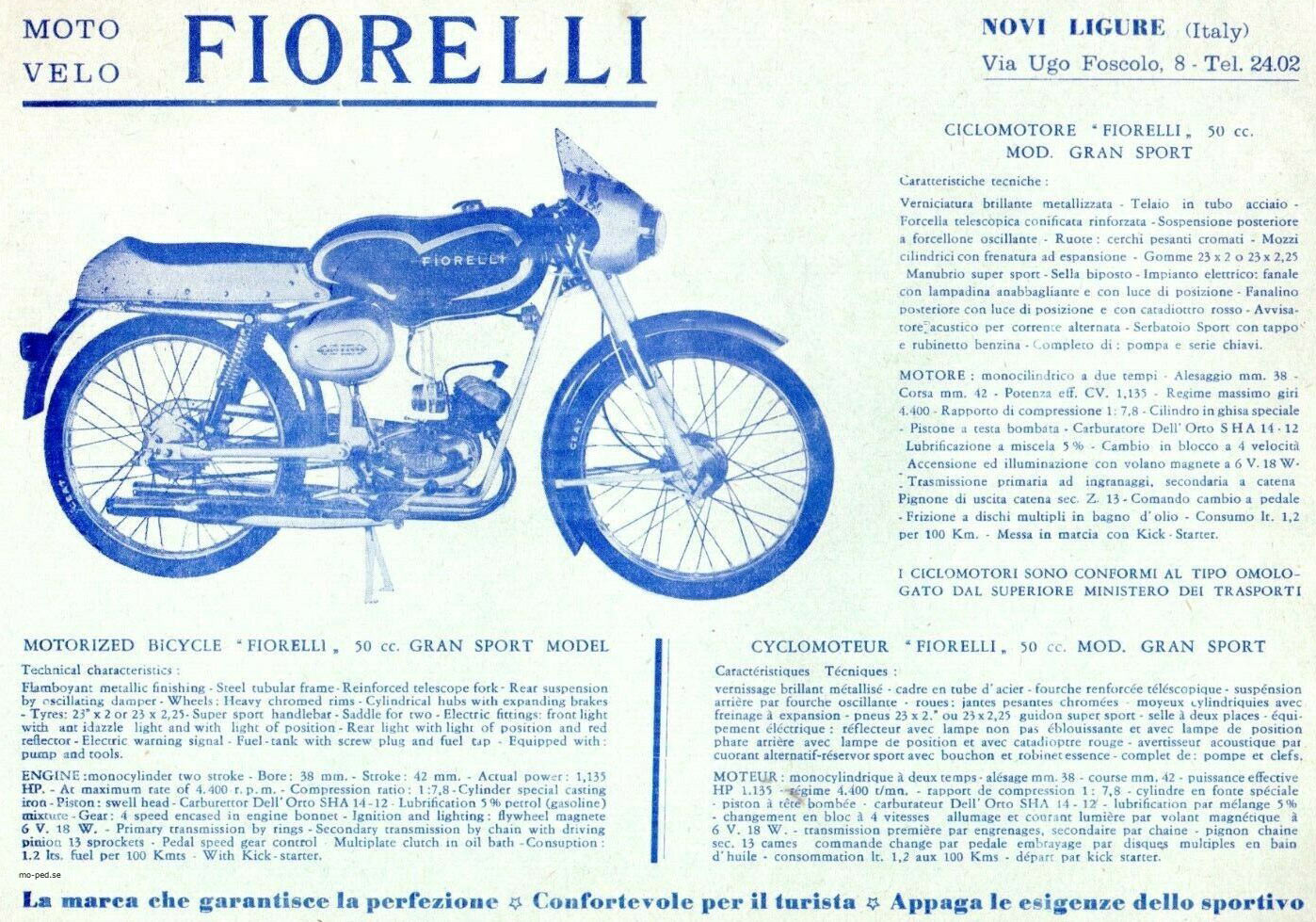

MOTORIZED BiCYCLE “ FIORELLI" 50 cc. GRAN SPORT MODEL

Technical characteristics:

• Flamboyant metallic finishing • Steel tubular frame • Reinforced telescope fork

• Rear suspension by oscillating damper • Wheels: Heavy chromed rims

• Cylindrical hubs with expanding brakes

• Tyres: 23" x 2 or 23 x 2,25 • Super sport handlebar • Saddle for two

• Electric fittings: front light with ant idazzle light and with light of position

• Rear light with light of position and red reflector • Electric warning signal

• Fuel-tank with screw plug and fuel tap • Equipped with: pump and tools.







ENGINE: monocylinder two stroke • Bore: 38 mm. • Stroke: 42 mm. • Actual power: 1,135 HP.

• At maximum rate of 4.400 r.p.m. • Compression ratio: 1 :7,8 • Cylinder special casting iron

• Piston: swell head • Carburettor Dell' Orto SHA 14-12 • Lubrification 5 % petrol (gasoline) mixture

• Gear: 4 speed encased in engine bonnet • Ignition and lighting: flywheel magnete 6 V. 18 W.

• Primary transmission by rings • Secondary transmission by chain with driving pinion 13 sprockets

• Pedal speed gear control • Multiplate clutch in oil bath

• Consuption 1.2 lts. fuel per 100 Kmts • With Kick-starter.





Ciclomotore

Fiorelli Gran Sport

Motore 4 gear





























Large.
